Product Description

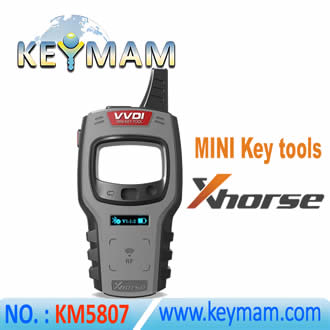

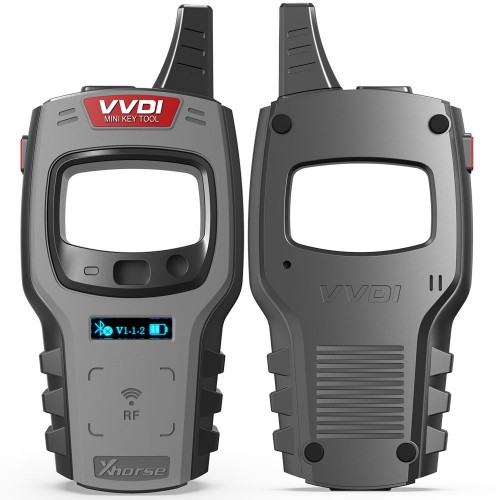

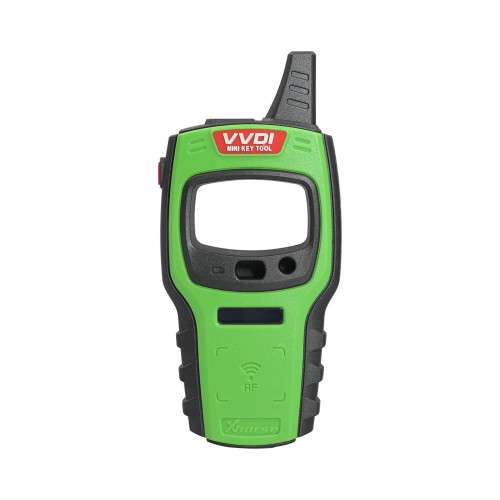

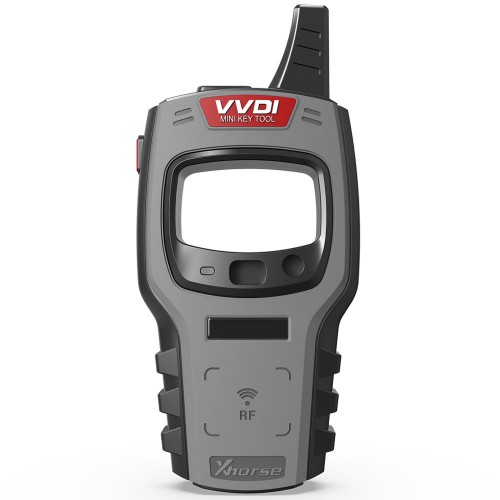

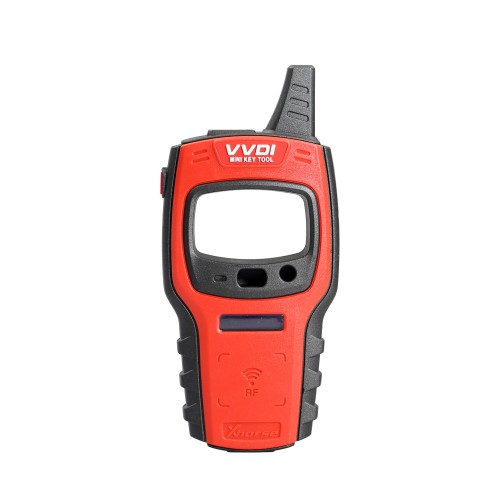

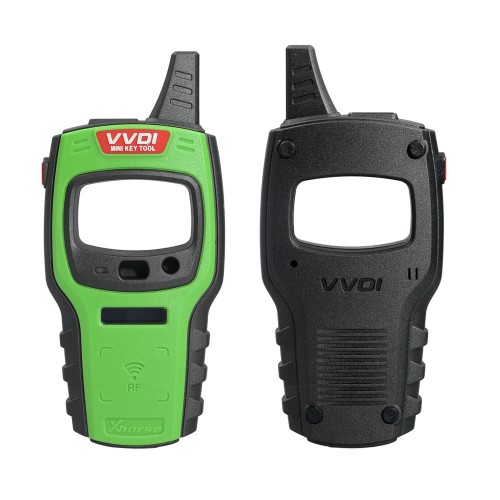

Xhorse VVDI mini key tool comes as the replacement of VVDI key tool. It features size, weight, high speed and compatibility of mobiles. Works well for chip cloning and remote key copying and generation. VVDI mini key tool is Multi-Language Now, it's free to switch language.Notice this is the no ID48 96bit function and no 1 day a free token version.

VVDI Mini Key Tool Remote Tester

Notice this is the version without  ID48 96bit and without One Token

Mini Key Tool Highlights:
1.Frequency test speed (super fast, frequnecy: 300-450Mhz, distance: 30 cm)
2.Database powerful,support more cars
3.Based on Mobile phone App via Bluetooth,very convenient, Both IOS and Android
4. Fast reading speed to get chip information
5. The mini key tool can copy 48 96 bit
Please use mini key tool to generate Xhorse new remote key 10pcs,after collect points,1 hour later,server will open ID48 96bit function free.
6. Update Frequently:  Check Latest Update
7. Online customer servies
8. A lot of user feedback receive: Check Mini keytool Review
9.Xhorse APP Language: English, German, Spanish, Persian, French, Hebrew, Hindi, Indonesian,Italian,
Korean, Polish, Portuguese, Russian, Thai, Turkish, Ukrainian, Vietnamese
(free to switch the language you want now)

About GL version explaination
From different regions customer's feedback, they also need some other regions remote options(like ME region they also need some SE and EU database options)

So from 2.3.5 firmware there is GL version(Global) for customers
1. GL version from old 3 regions include(EU ME SE), those 3 old regions will automatically change to GL version from 2.3.5 firmware.
2. GL version will cover more remote options, will keep updating and adding more remotes
（if you find any options missing compare to old region version,you can contact us , we will update）
3. GL version already released more universal smart key generation options
4. If customer still prefer to keep old region version, just send us your device SN, we will setting back for you.
(GL or keep old region version,contact us from Xhorse APP online service or PM Xhorse support)

VVDI MINI Key Tool Function List :




1. Transponder Editing &Cloning



2. Transponder Generation
Support TP transponder & parts of special transponder more than 700 vehicle models, reduce the stock of transponders efficiently.


3. Remote Cloning
Support the HCS/Fixed code cloning, support non-HCS rolling code cloning, support
PT22XX, LX918, HT6P20, VD5026, AX5326, HT12X fixed code editing.


4. Garage Remote Generation
Support more than 100 types.


5. Remote Generation
Support 200 brands, over 2000 vehicle models. Generate more abundant and thorough key pictures,
transponder types, key blanks and remote matching data.


6. Frequency Test
Support the power test within the range of 300-450MHz.

7. Toyota H transponder
Activate Toyota H transponder generation function



8. Special Functions:
1) Unlock Toyota smart keys
2)ID63 to ID83
3)Special 4D to 4C
4)Detect remote

9.Mini Key Tool More functions


10.Set type of vvdi super chip



11. VVDI Mini Keytool FULL Authorization:
AI - Car remote type                                            Already activated
AI - Key blade type                                              Already activated
AI - PIN code                                                       Already activated
Remote - Vehicle remote                                    Already activated
Remote - Garage remote                                    Already activated
Remote -Proximity remote                                  Already activated
Generate transponder - 7935/ 46/ 4D/ 48/ 8C   Already activated
Generate transponder -Toyota H (8A)                Already activated
Transponder clone - ID46                                   Already activated
Transponder clone - ID4D                                  Already activated
Transponder clone - ID4E                                   Already activated
Transponder clone - ID70/ 83                             Already activated
Transponder clone - ID11/ 12/ 13/ 4C/ 8C         Already activated
Transponder clone - Toyota/ Daihatsu G           Already activated
Transponder clone - Toyota H (8A)                    Already activated
Transponder clone - ID33 /42                            Already activated
Transponder edit - 11/12/13/4C                        Already activated
Transponder edit - 46/ 47/ 48/ 4D/ 4E              Already activated
Remote clone - Fix code                                    Already activated
Remote clone - Rolling code                             Already activated
Remote clone - make new                                 Already activated
Detect remote frequence                                   Already activated
Set type of VVDI super transponder                  Already activated
VVDI Special TP                                                  Already activated
Special 4D to 4C                                                 Already activated
Unlock Toyota smartkey                                    Already activated
ID63 to ID83                                                       Already activated
Hyundai/ KIA PIN code                                      Already activated
Copy BYD smart key                                          Already activated
Detect ignition coil signal                                  Already activated
Online technical support                                   Already activated
Technical center                                                 Already activated
Video center                                                      Already activated
History                                                               Already activated

12. VVDI Mini Key tool Parameters:
OLED Size: 0.91’
OLED resolution: 128*32
Extra Power: 5V/1A
Usage Time: ≥10 Hour
Product Size: 140x64.5x23.5mm
Weight: 86g
Charge Current: 650mA
Battery Capacity: 850mAh
Battery Voltage: 3.6-4.2V

VVDI Mini Key tool VS VVDI KEY TOOL Max:

	Mini Key Tool	Key Tool Max
Appearance	Small, light and portable	Contain screen,Convenient
Update	Easy to update app. Most update can be done "Update Kit"	System update
Connect	Power and network are required	Work Alone
Functions	Remote and Chip Generation & Copy are the same database with Max	Remote and Chip Generation & Copy are the same The same database with Mini
ID48 96bit function and Token	NO	Should generate Xhorse new remote key 10pcs then system open the ID48 96bit Pay for the token
Bluetooth	No	Yes
Connect XP005 Mini OBD	No	Yes

Steps To Use VVDI Mini Key Tool :





If you need more details, please Click How to install new Xhorse App and register VVDI Mini Key Tool ?

How to Change VVDI Mini Key Tool Language:


VVDI Mini Key Tool Firmware Update:


Database Update: (via a PC or mobile phone)
update on a PC

update on a mobile (iOS or Android)

VVDI Mini Key Tool Reviews: (User Feedback)

Michael Wheepy Crousaz:

I will keep it with me all the time
Very convenient to check transponder type and frequencies, small and easy
I have only 1 fear about that tool
It’s that it will become too easy to anyone to make themselves keys
That’s bad. It’s killing key and locksmith market
And security of course

Kike Ortiz:

Well from my experience, mini key tool will do a quicker and better job then the key tool. The mini will NOT renew remote for what I understand.
I bought the mini recently as I wanted to do a ID 48 for VW and online, since offline can damage the original remote.
I notice the activation would cost $250, and the mini was at $139-150. With free activation and 1 year tokens. So now have both.

well 1 job pays for itself. Actually have 2 key tools and 1 mini, if a new one comes out that does something totally new,
I'll probably buy it. 1 or 2 jobs pays for itself. I've had case where my AutoProPAD or other programmers fails, and key tool gets the job done.
Probably my favorite tool. Just pre ordered 80 super chips as well

Kelvin Tan:

Just different on level. Low spec, middle spec and high spec.

Andrew Cuillo:

able to clone an H chip with mini keytool, u just need the super chip

the pixels are not bad. it’s because the camera shutter is faster than the LCD refresh rate. beasides,
it happened so quick and it was sunny outside I probably caught a glare but it is fine

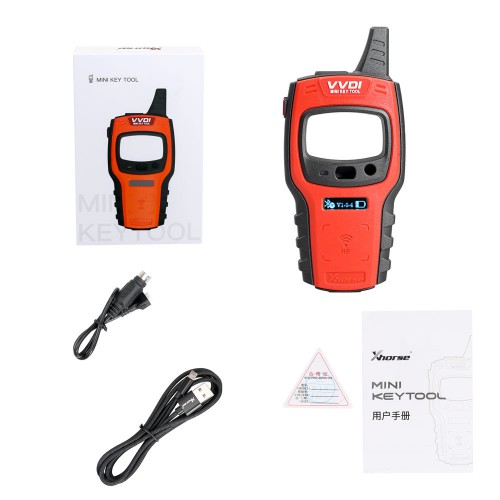

VVDI Mini Key Tool Package includes:

1pc x VVDI Mini Key Tool Device
1pc x Remote Programming Cable
1pc x USB cable
1pc x User Guide

If you have any problems, please do not hesitate to contact us.
