Product Description

1. Hardware Improved Version Xhorse VVDI BIM Tool Pro.
2. It's not only for a locksmith but also has functions of coding, programming, mileage reset, and much more.

Xhorse VVDI BIM Tool Pro Key Programmer Hardware Improved Edition V1.9.0

VVDI BIMTool Pro is the update version of VVDI BMW Tool, with enhanced edition for BMW, and it is an essential tool for automotive maintainers.

Highlights:

• Current software V1.9.0
• Coding and programming
• OBD Key Generation + Mileage Correction + Reading EEPROM
• Simultaneous/Reading Engine
• Ethernet port; supports 10/100M programming via Ethernet.
• Supports DoIP Vehicle/Module Programming
• Language: English, Italian, Spanish, Deutsch, Hungarian, Polish, etc.
• Supports BMW ECU programming (NBT/CIC) (connection via a network cable)
• Faster speeds for the F/G Chassis programming (connection via a network cable)
• Operating System: Compatible with WIN7 8 10 etc, no computer operating system limitation.
• Supports BMW E-sys and Rheingold Diagnostic System. Able to replace specialized devices. (connection via a network cable)
• Supports direct reading of ISN data without disassembling the ECU (N13/N20/N55/N63)

VVDI BIM Tool Pro Update Log:

(2023-08-10)
Require firmware V1.8.4

1. Unlock BDC module via OBDII. Easy and fast job(SWFL_00002419.085.xxx.xxx not support OBD)
2. Bugfix


Package List:
1pc * VVDI BIMTool Pro Main Unit
1pc * OBD Cable
1pc * Ethernet Cable
1pc * USB Cable
1pc * ECU Reflash Cable
1pc * Plastic Box

VVDI BIM TOOL  Pro Using Notice

1. Notice Do not use the Internet Port and USB Port at the same time:
For FEM/BDC Program using the USB Port connect is ok.
For Others Program you can connect the Internet Port .

2. When connect the Port with PC, first it display"Booting", after about 20 seconds it will display"BMW"
then the connect is ok.

Xhorse VVDI BIMTool Pro Functions:

1. E-Series programming, coding, DTCs
1). Support autodetect car chassis
2). Support scan all car units
3). Support calculate all configuration units
4). Support read/write car configuration(FA)
5). Support input HW/ZB number to programming
6). Support calculate default coding from FA
7). Support edit detail coding information, change car config
8). Support many languages DTC code

2. F-Series programming, coding, DTCs
1). Support autodetect car chassis
2). Support read/write car configuration(FA)
3). Support calculate programming files from unit, car, whold database
4). Support calculate default coding from FA
5). Support edit detail coding information, change car config
6). Support detail special function list from coding
7). Support many languages DTC code

3. CAS1/CAS2/CAS3/CAS3+/CAS3++ISTAP OBD key learning
1). Support read key information, write key inforamtion
2). Support key learning
3). Support read/write EEPROM
4). Support read ECU/gearbox synchronize codes
5). Support write ECU/gearbox synchronize codes
6). Support synchronize ECU and CAS
7). Support synchronize CAS and ELV
8). Support read ISN via OBDII
9). Support reset KM via OBDII
10). Support disable key/enable key

4. CAS4(1L15Y)/CAS4+(5M48H) OBD key learning
1). Support read CAS encrypt key via OBDII
2). Support key learning via programmer and via ignition switch
3). Support disable key/enable key
4). Support erase key position
5). Support reset KM via OBDII
6). Support read ISN via OBDII
7). Support backup/restore coding
8). Support update original CAS4 file

5. FEM/BDC OBD key learning
1). Support read FEM/BDC encrypt key via OBDII
2). Support key learning via programmer and via ignition switch
3). Support disable key/enable key
4). Support erase key position
5). Support reset KM via OBDII
6). Support read ISN via OBDII
7). Support backup/restore coding
8). Support exchange used FEM/BDC
9). Support close/open transport mode
10). Support reset ECU lock
11). Support switch on ignition without working key

6. CAS EEPROM dump key learning
1). Support EWS1, EWS2, EWS3, EWS4, CAS1(0K50E), CAS2(2K79X), CAS3(0L01Y), CAS3+(0L15Y), CAS3++ISTAP(0L15Y, 0M23S)
2). Support prepare dealer key via programmer
3). Support disable key/enable key
4). Support read ISN from working key

7. 8HP Gearbox renew
1). Support clear ISN in 8HP gearbox
2). Support backup/restore coding
3). Support reset adaptation information

8. Read synchronize code from E-Series ECU: Support MEV9N46L, MSV70, MSS60, MS450, N62 etc

9. Read E-Series/F-Series ECU ISN via OBDII
1). Support MSV80, MSV801, MSD80, MSD81, MSD802, MSD812, MSD851
2). Support MED17xx/MVD17xx/MEVD17xx/MV1722
3). Support MED172/MEV17N46/ME17N45
4). Support MEVD172Y/MEVD172/MEVD1725/B38/X63TU

10. Support exchange ECU and CAS
1). Support write ECU ISN via OBDII
2). Support write ECU VIN via OBDII
3). Support change ECU ISN and VIN with EEPROM dump
4). Support chagne CAS1/CAS2/CAS3/CAS4 ISN and VIN with EEPROM dump

11. CAS repair (OBD&EEPROM)
1). Support repair ISTAP CAS
2). Support repair CAS EEPROM(Service mode EEPROM), you can start engine after repair the file (CAS1,CAS2,CAS3,CAS3+,CAS3++ISTAP)

12. CAS3+/CAS4+ lost all dump file support restore ISN and VIN
1). Support CAS3+(1L15Y) encrypt version
2). Support CAS3++(ISTAP) version
3). Support CAS4+(5M48H) version

13. File KM calibration
1). Support EWS1, EWS2, EWS3, EWS4
2). Support CAS1(0K50E), CAS2(2K79X), CAS3(0L01Y), CAS3+(0L15Y, 0M23S)
3). Support CAS4(1L15Y), CAS4(5M48H, 1N35H)
4). Support E-Series dashboard EEPROM(M35080)
5). Support F-Series dashboard EEPROM(35160, 35128)

14. Unlock HITAG2 key: Support lock hitag2 key made from BMW TOOL via programmer

15. EWS3/EWS4 can read EEPROM, write EEPROM via CAS PLUG

BIMTool Pro Parameters

Power                                         1W
USB Interface                           USB 2.0
Extra Power                              12V/2A
Working temperature             -20~70℃（-4~158°F）
Store temperature                   -40~80℃（-40~158°F）
Item dimension                        146*85*30mm
Package dimension                 355*283*87mm
Net weight                                0.21kg
Gross weight                             1.6kg

VVDI BIMTool Pro Software Display:





Xhorse VVDIBIM PRO vs VVDI BMW

Item	VVDI BIMTOOL Pro	VVDI BMW TOOL
Remark	In stock	Out of stock
Language	Chinese, English, Italian, Spanish, German, Hungarian, Polish	Chinese, English, Italian, Spanish, German, Hungarian, Polish
Program E/F chassis	Yes	Yes
Code E/F chassis	Yes	Yes
Learn OBD key	Yes for CAS1 / CAS2 / CAS3 / CAS3+ / CAS3+ ISTAP / CAS4 / CAS4+	Yes for CAS1 CAS2 CAS3 CAS3+ CAS3+ISTAP CAS4 CAS4+
File make key	Yes for CAS1 CAS2 CAS3 CAS3+ ISTAP CAS4 CAS4+, etc.	Yes for CAS1 CAS2 CAS3 CAS3+ ISTAP CAS4 CAS4+, etc.
Gnerate key for FEM/BDC system	Yes	Yes
Correct mileage	Yes for CAS1 CAS2 CAS3 CAS3+ ISTAP CAS4 CAS4+ and FEM / BDC system	Yes for CAS1 CAS2 CAS3 CAS3+  ISTAP CAS4 CAS4+ and FEM/BDC system
Read EEPROM & synchronous code data	Yes for CAS1 CAS2 CAS3 CAS3+	Yes For CAS1 CAS2 CAS3 CAS3+
Get ECU ISN	Yes	Yes
Support synchronous ECU and CAS,  synchronous ELV and CAS	Yes	Yes
Reset 8HP gearbox in F chassis	Yes	Yes
Exchange ECU and CAS	Yes	Yes
Add ethernet port	Yes, support 10/100M programming via Ethernet	No
WiFi	Yes, WIFI 802.1b/g, 150Mbps high-speed connection, and WIFI OTA upgrade	No
DoIP Vehicle/Module Programming	Yes	No
BMW ECU programming (NBT/CIC)	Yes,  connect via network cable	No
Speed up the F/G Chassis programming	Yes, connect via network cable	No
BMW E-sys and Rheingold Diagnostic System	Yes,  able to replace the specialized devices (connect via network cable)	No
Read N13/N20/N55/N63 ISN data without disassembling	Yes	No

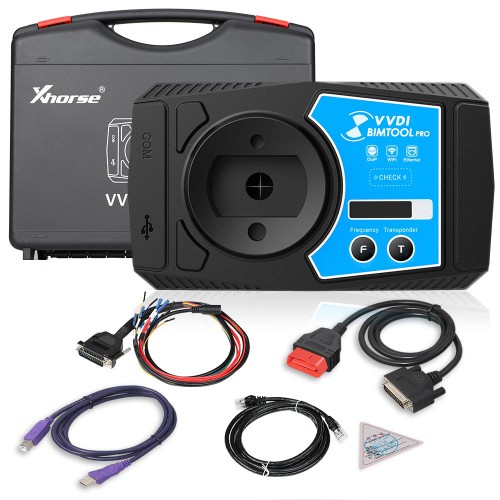

Package Includes:

1pc x BIMTool Pro main unit
1pc x USB cable
1pc x network cable
1pc x OBD cable
1pc x ECU Reflash cable
1pc x Plastic box
